Tahe Techno Wind Foil 160 Package

Package Category: Wind Foiling – Board w/ Foil Package

This Entry Wind Foiling Package includes a 160 liter Techno Windfoil Board and appropriate Foil to facilitate exciting Wind-Foiling success. This versatile and user friendly foil package includes a Tahe Techno 160 board that also includes a fin for windsurfing versatility. We’ve combined this popular board with a user friendly foil from Starboard - the EVO Supercruiser Top plate. Powerplate Tuttle adapter is part of this package. The Foil is modular and the board is foil ready for Windfoiling – just plug and play and you’ll be all set for rapid success and performance to tap into al in one great package.

BOARD:

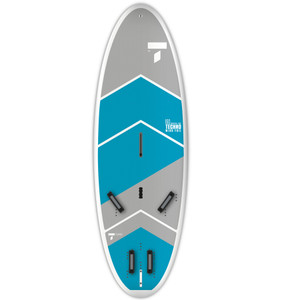

Tahe Techno Wind Foil 160 - Convertible Freeride / Foil-board with Eva Deck.
This offering from Tahe (formerly Bic) – the Techno Foil 160 was developed to provide a one board solution for both traditional freeride use and foil-boarding and designed to do both at a high level. The board was designed by one of the hottest shapers around, Jean-Marie Guiriec. The 160 targets Progressive Entry (center fin) Freeriding (single rear performance fin) and Windfoiling (foil not included). Large padded deck area on the 160 give the board more appeal for new comers climbing on and falling on the deck surface. The 160 has a center fin box system and offers a Rapid removal center fin (targeting entry short boarders) to make putting in and taking off the center fin easy. The Wind Foil 160 is available in Ace-Tech construction= Ace-Tec. Ace-Tec construction will provide exceptional strength to weight ratios – ideal for learning foiling, freeriding, and first short board riding experiences.

160 Features:
- 3 in 1 shape for both, Short board entry, Freeriding windsurfing & Windfoiling.
- Ace-Tec construction
- 160 liters of volume.
- Wide width 82 cm with through tail.
- Short and wide to optimise Freeride and foiling performance criteria.
- EVA deck pad 2/3 deck of board.
- Multiple inserts for strap placement.
- Qty 4 - Bic adjustable footstraps included.
- Deep Tuttle / Foil box.
- Fin inclusion (Beach DT and Center fin).

160 Specs:
255 x 82cm x 160 L volume.
AceTec =11 kg / 24.2 lbs

Construction:
Ace-Tec construction technology, resulting in a board with an unrivaled strength/weight ratio, Light Weight Performance and durability. Epoxy / Fiberglass double layer wrap, with additional reinforcement areas to improve stiffness and performance. ASA Polymer outer skin for unmatched durability and impact resistance. Embossed EVA foam pad for maximum comfort. Molded external inserts – no penetrations through outer shell and maximum strength. Molded, Lightweight and watertight 15 kg/m3 EPS Foam Core.


FOIL:
Starboard SuperCruiser Evolution Top Plate Aluminum Foil Set - Fun / Easy / Modular foil!
The Super Cruiser foil from Starboard is a user friendly performance foil ideal for early successful foiling – and low speed foiling efficiency. This is Starboard's best seller for windfoiling use. Large 1700cm2 front wing 330 cm2 rear stabilizer surface areas help provides excellent early lift to easily keep you flying and progressing through foil jibes and 360 maneuvers. New Evolution 102 cm fuselage helps stabilize the foils and transfer energy into the mast. The 82 cm V8 Aluminum mast is now equipped with a pre-assembled Top Plate that’s compatible with all track box boards in the industry. Torx screws and torx wrench are supplied for assembly. XXL V2 foil bag recommended – and sold separately.

Features:
- SuperCuiser AL foil set with Top Plate mast head.
- Targets Windfoiling – Track box boards - easy / performance.
- Carbon front wing and rear stabilizer = C300
- New Alloy Evolution fuselage – stiff and strong.
- Fuselage features a new mini-bridge – aids stiffness and flight control.
- Evolution Fuselage = Enhanced waterflow – more efficient entry.
- 82cm V8 Aluminum mast – with Top Plate (pedestal mount) installed.
- Stainless Torx Screw Set and Wrench - included.
- EVA front wing and rear stab covers included.
- Rear Stab shim kit included.
- Pedestal plate pitch shim - included.

* Team XXL Foil Bag V2 recommended for storage and transport. Sold Separately!

Size / Specs:
Front Wing: 1700cm
Rear Stabilizer: 330 cm
Fuselage: 102 cm
AL Mast: 82 cm
Connection: Top Plate / Pedestal Mount

Construction:
Carbon Wings are C300 = High Modulus pre-preg carbon construction. Tried and true – durable performance and industry standard for Starboard foils.
Fuselage – 6061 aluminum fuselage construction.
Aluminum Mast - Use a proprietary and patent-pending triple beam cross-section with a unique profile that pushes more material to the perimeter than any known other masts, providing unprecedented stiffness and performance.

PowerPlate Foil Adapter -Tuttle:
Chinook PowerPlate –WindFoil attachment conversion - board box Specific
This unique product allows windsurfers to convert existing boards to be windfoil capable boards. The PowerPlate makes it simple to bolt any windsurf board with a Tuttle or Deep Tuttle fin box style to the common 4-Hole plate pattern found on pedestal mount foils. The over-sized plate area disperses the foils load over a large area of the bottom of a board. This minimizes fin box and hull stresses that windfoils place on non-foilbox windsurfing boards. It is a great way to make your windsurfing boards more versatile.

Features:
- 2-pc Solid Aluminum construction.- Made in USA. - 6 mm threads on all box types (standard on modern boards).
- 3/16" foam padding against bottom of board. - Requires Pedestal mount for foil attachment (not included).- Fore and Aft foil placement positions. - Includes 4 stainless mounting screws (for Pedestal attachment). - Supports large area around existing fin box. - Fore & Aft fine tuning can be done with the multiple mounting hole system,
* Forward = quicker lift, Backward = slower lift
